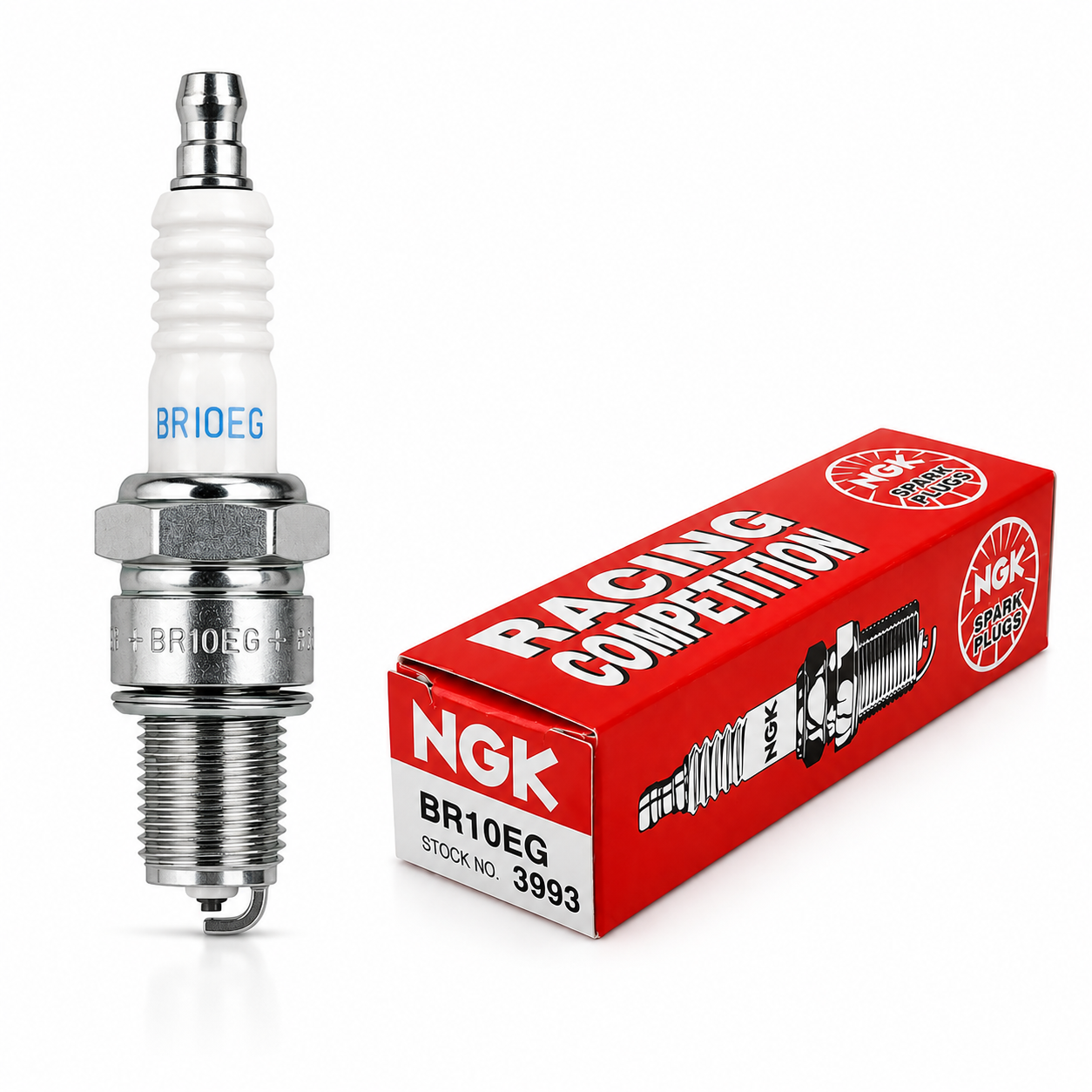

NGK BR10EG Racing Spark Plug

NGK BR10EG Racing Spark Plug

Aún no hay reseñas. ¿Ya la compraste? Cuéntaselo a otros pilotos ›

NGK-BR10EG

NGK Racing Series plugs are engineered to withstand the harshest engine conditions. Special insulator nose configurations improve throttle response. Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage.

Specifications

Thread Diameter 14mm
Thread Pitch 1.25mm
Seat Type Gasket
Reach 19mm (3/4")
Hex Size 13/16" (21mm)
Terminal Type Removable Nut
Overall Height ISO
Gap .024" (0.6mm)
Resistor Yes
Resistor Value 5k Ohm
Heat Range 10
Torque Specs Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
NGK stock no. 3830
Center electrode material Nickel, type Fine Wire, size 1.3mm, projection Non-Projected
Ground electrode material Nickel, type Standard, quantity 1

Manufacturer data: ngk.com · retrieved 2026-09-05
